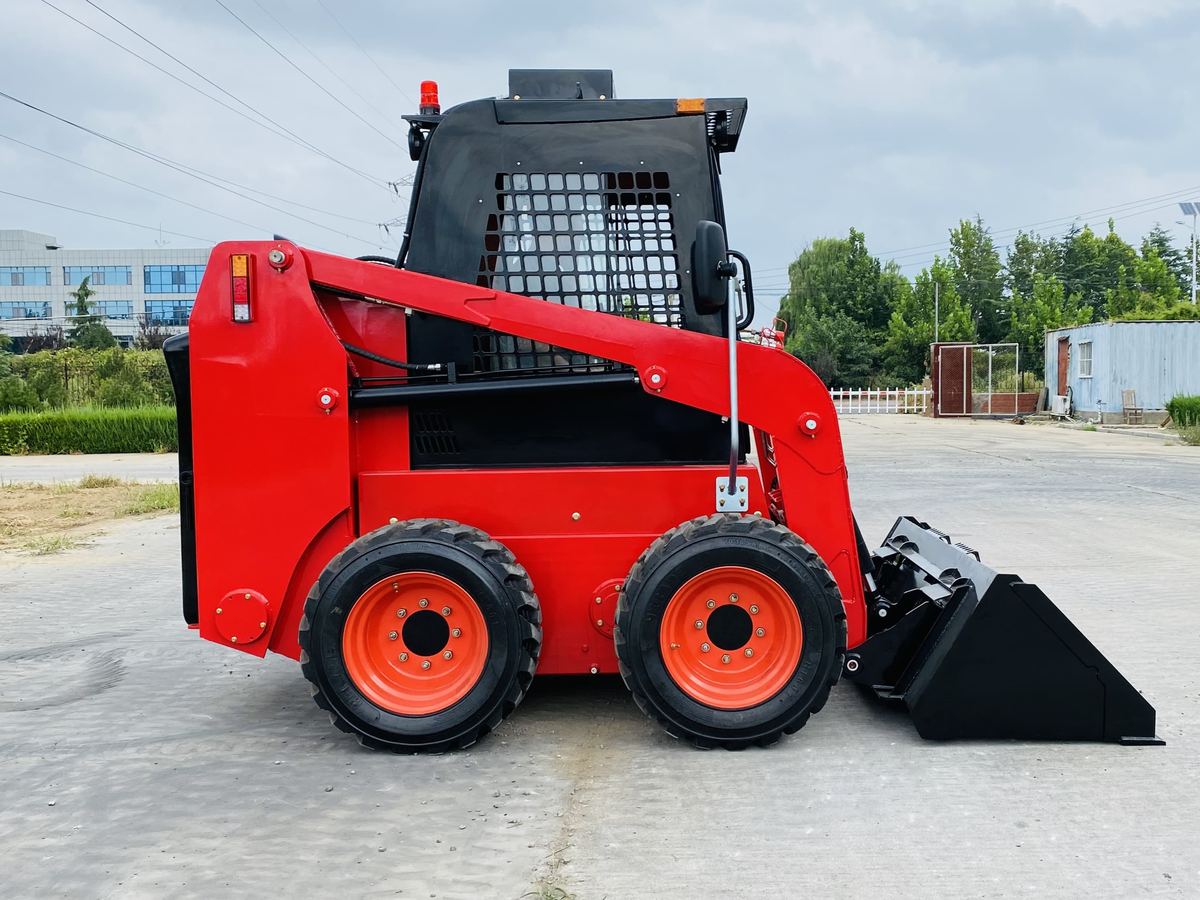

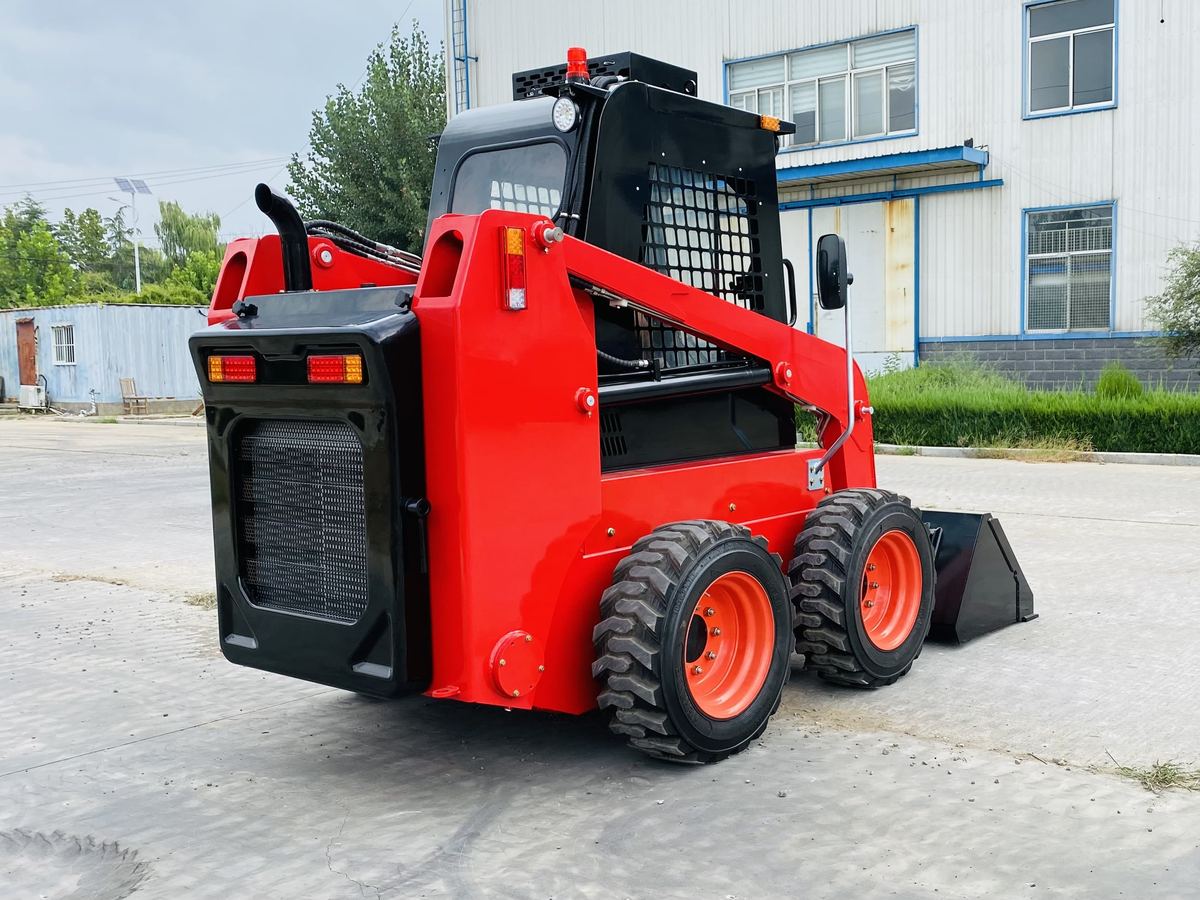

HG-700
Wheel skid steer loader
Because its smaller turning radius is less than half of the same level of articulated loaders, it is especially suitable for operations in narrow places such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks an The skid steer loader has a lifting arm, a s
Key Specifications
- Load weight
- 700kg
- Rated power
- 45KW
- Bucket capacity
- 0.4 m³
- Max working height
- 4042 mm
- Max pin height
- 3079 mm
- Max dump height
- 2342 mm
- Total height
- 2909mm
- Wheelbase
- 991 mm
Technical Specifications for Wheel skid steer loader
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Load weight | 700kg |
| Rated power | 45KW |
| Bucket capacity | 0.4 m³ |
| Max working height | 4042 mm |
| Max pin height | 3079 mm |
| Max dump height | 2342 mm |
| Total height | 2909mm |
| Wheelbase | 991 mm |
| No bucket length | 2325 mm |
| Total width | 1726.5 mm |
| Bucket width | 1742 mm |
| Total length( with bucket) | 2206 mm |
