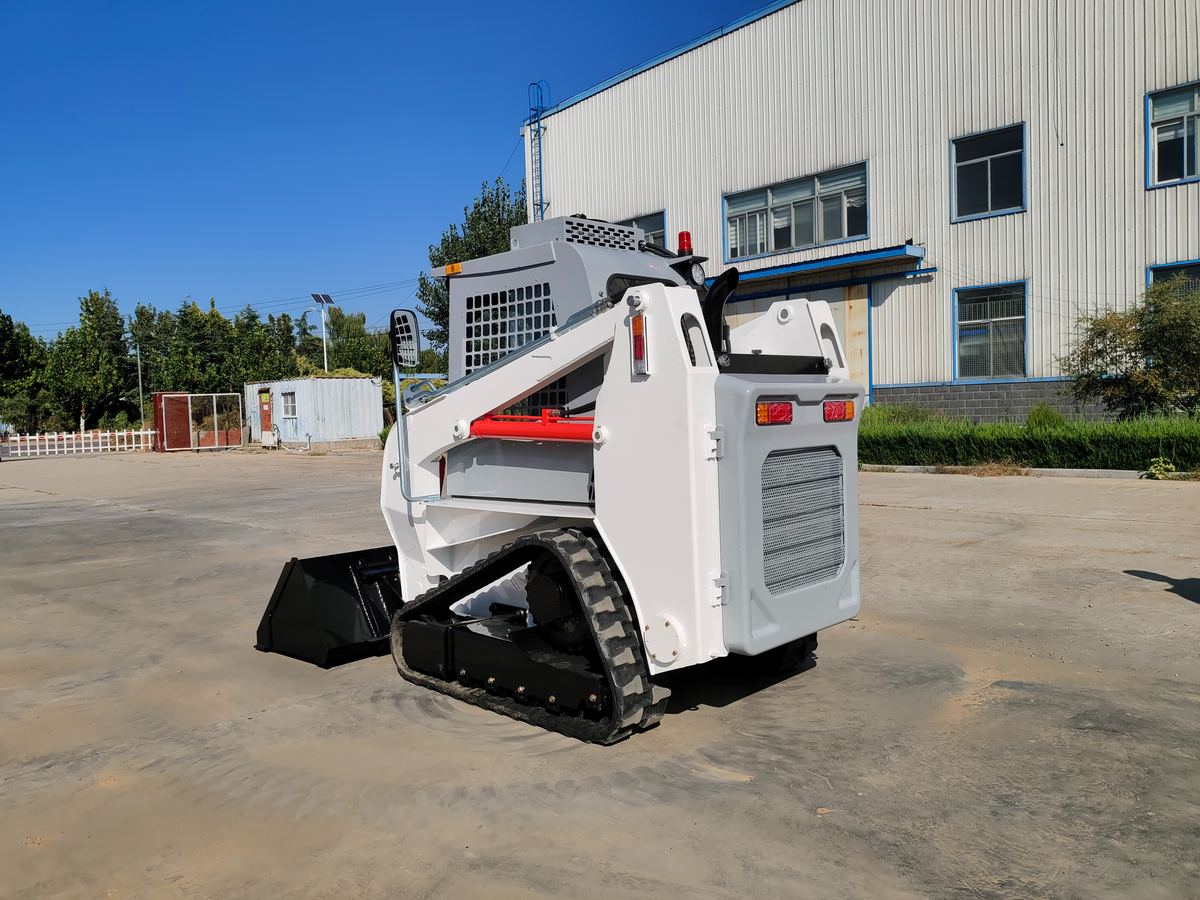

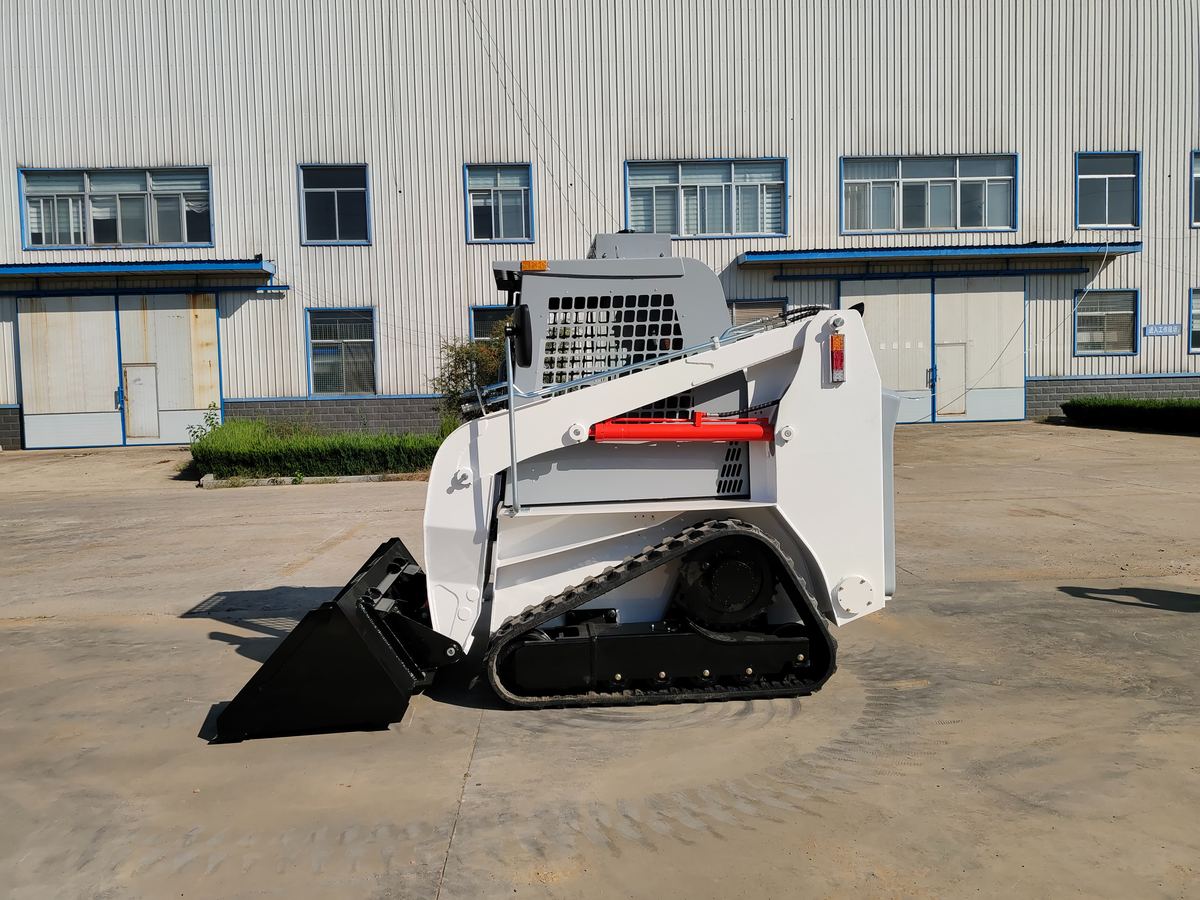

HG-700
Tracked skid steer loader
Because its smaller turning radius is less than half of the same level of articulated loaders, it is especially suitable for operations in narrow places such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks an The skid steer loader has a lifting arm, a s
Key Specifications
- Load weight
- 700kg
- Rated power
- 45KW
- Bucket capacity
- 0.4 m³
- Max working height
- 3660 mm
- Max pin height
- 2730 mm
- Max dump height
- 1990 mm
- Total height
- 2500mm
- Wheelbase
- 1230 mm
Technical Specifications for Tracked skid steer loader
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Load weight | 700kg |
| Rated power | 45KW |
| Bucket capacity | 0.4 m³ |
| Max working height | 3660 mm |
| Max pin height | 2730 mm |
| Max dump height | 1990 mm |
| Total height | 2500mm |
| Wheelbase | 1230 mm |
| No bucket length | 2170 mm |
| Total width | 1422 mm |
| Bucket width | 1700 mm |
| Total length( with bucket) | 3150 mm |
