HG-CDD20

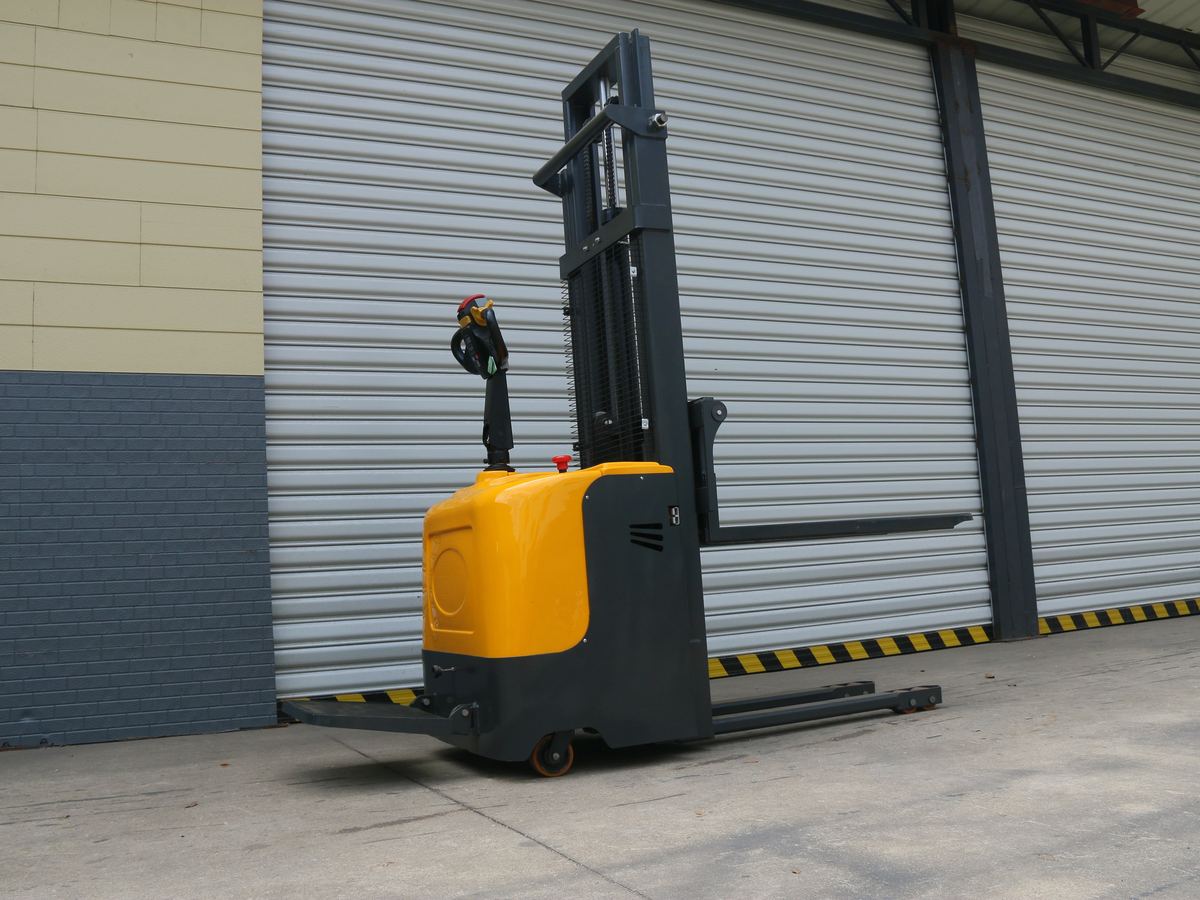

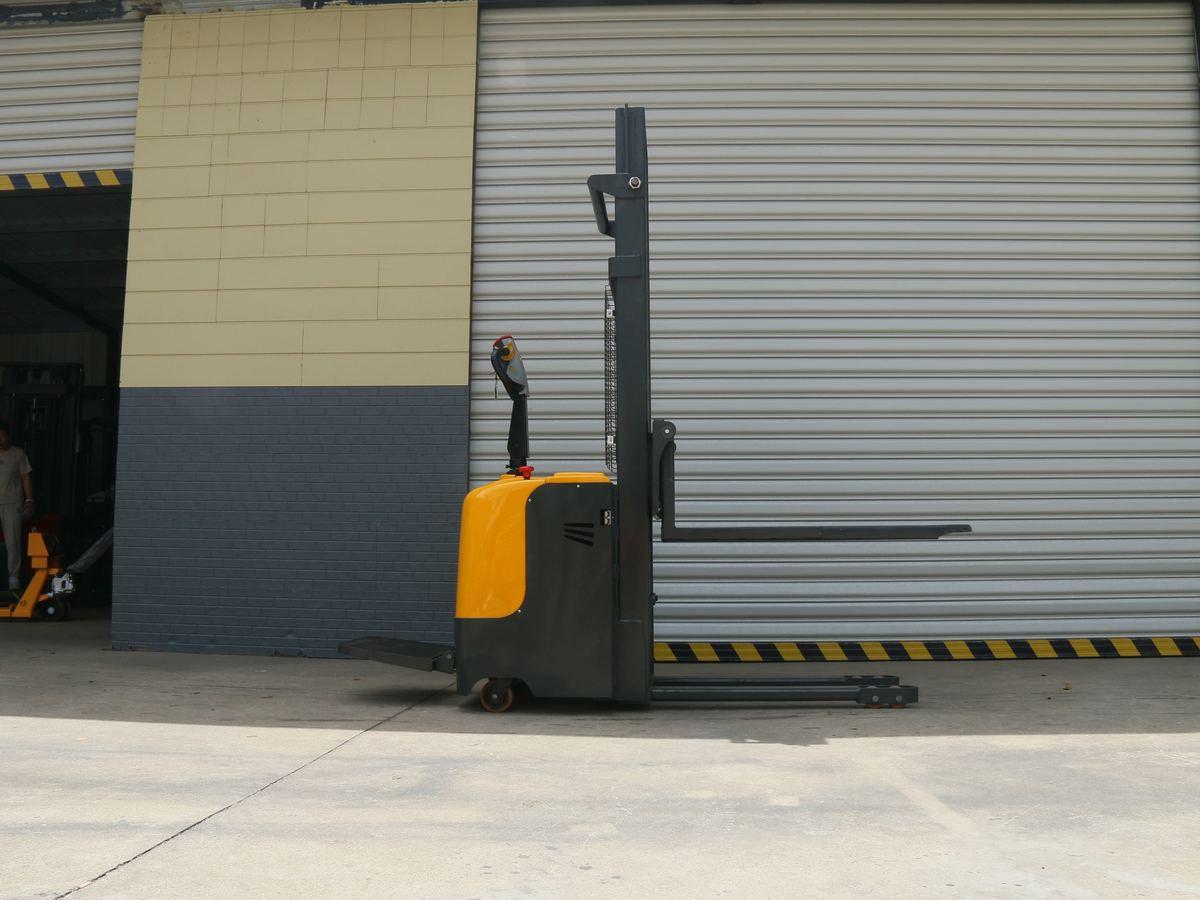

2Ton Electric Pallet Stacker
Floating universal wheels left and right to ensure stable driving of the vehicle; Italian ZaPI Ac0 controller, stable performance and precise control; 1.5KW AC brushless drive motor is powerful and maintenance-free; Widened and enlarged driving wheel with longer service life; Standard 100Ah maintena
Key Specifications
- Load capacity
- 2000kg
- Wheelbase
- 1383mm
- Overall Length
- 2023/2419mm
- Overall Width
- 850mm
- Lift Height
- 1600-4500mm
- Lowered mast height
- 2035mm
- Fork Dimension
- 1100×160×55mm
- Ground Clearance at center of wheelbase (Min)
- 30mm
Technical Specifications for 2Ton Electric Pallet Stacker
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Load capacity | 2000kg |
| Wheelbase | 1383mm |
| Overall Length | 2023/2419mm |
| Overall Width | 850mm |
| Lift Height | 1600-4500mm |
| Lowered mast height | 2035mm |
| Fork Dimension | 1100×160×55mm |
| Ground Clearance at center of wheelbase (Min) | 30mm |
| Turning Radius | 1619mm |
| Type ofoperation | Stand-up |
