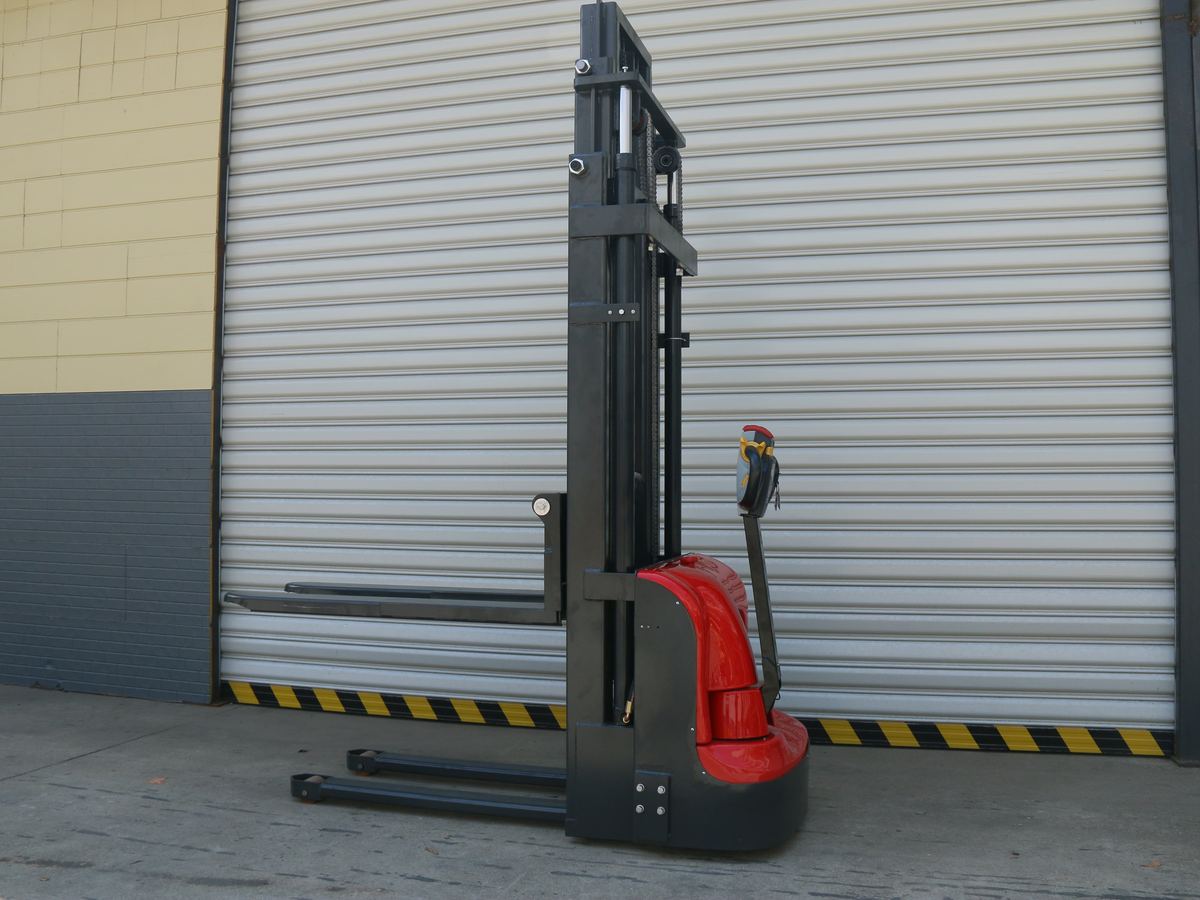

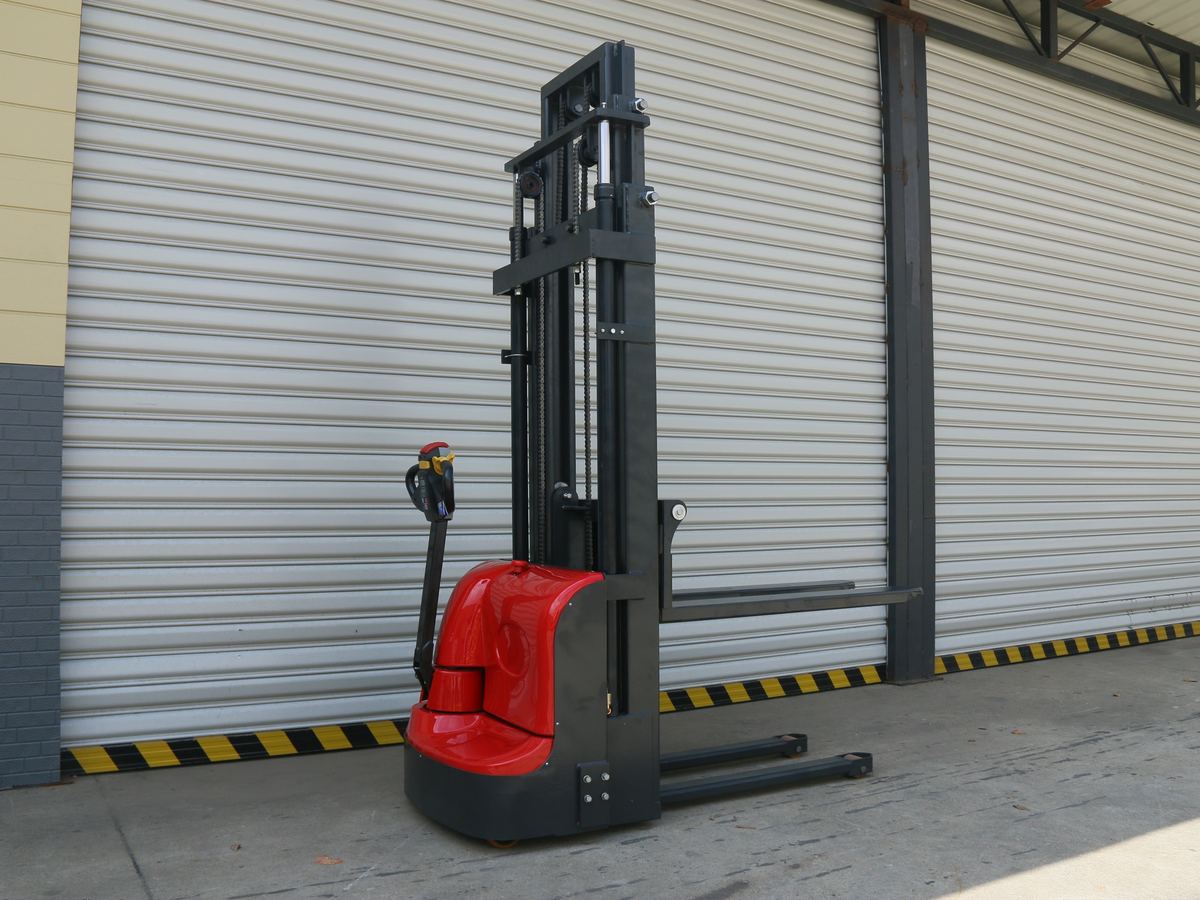

HG-CDD20
2Ton Electric Walk-behind Stacker
Floating universal wheels left and right to ensure stable driving of the vehicle; Italian ZaPI Ac0 controller, stable performance and precise control; 1.5KW AC brushless drive motor is powerful and maintenance-free; Widened and enlarged driving wheel with longer service life; Standard 100Ah maintena
Key Specifications
- Load capacity
- 2000kg
- Wheelbase
- 500mm
- Overall Length
- 2000mm
- Overall Width
- 800mm
- Lift Height
- 3000mm
- Lowered mast height
- 2080-2350mm
- Fork Dimension
- 1100×170×85mm
- Ground Clearance at center of wheelbase (Min)
- 30mm
Technical Specifications for 2Ton Electric Walk-behind Stacker
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Load capacity | 2000kg |
| Wheelbase | 500mm |
| Overall Length | 2000mm |
| Overall Width | 800mm |
| Lift Height | 3000mm |
| Lowered mast height | 2080-2350mm |
| Fork Dimension | 1100×170×85mm |
| Ground Clearance at center of wheelbase (Min) | 30mm |
| Turning Radius | 1350mm |
| Type ofoperation | Walk-behind |
